Suburban Furnace Time Delay Relay Board Kit (521314) SF-T Series

Relay Used With The Furnace of Maximum heating performance in a low-profile design. Suburban's SFQ Series furnaces provide maximum heating performance in a ducted unit, with capacities from 20,000 to 42,000 BTU Per Hour. Yet, at only 7-1/2 Inches high, they can be easily installed in areas that might otherwise be left unused. With nine duct connection choices (top, front, side and bottom), as well as models for interior and exterior installation and service, the SFQ offers almost unlimited design flexibility in mid-size and large RVs.

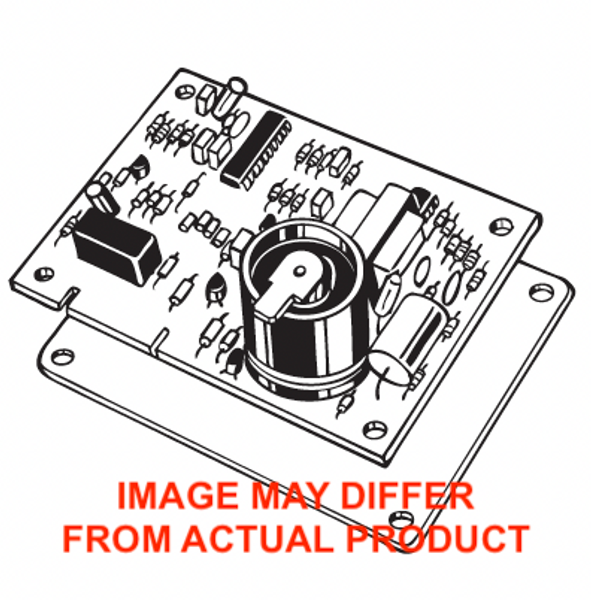

Time delay relay board kit for T models

Compatibility: Suburban Furnace Models SF-20QT/ SF-25QT/ SF-30QT/ SF-35QT/ SF-42QT/ SF-20FQT/ SF-25FQT/ SF-30FQT/ SF-35FQT/ SF-42FQT/ SFV-20QT/ SFV-25QT/ SFV-30QT/ SFV-35QT/ SFV-42QT/ SFV-20FQT/ SFV-25FQT/ SFV-30FQT/ SFV-35FQT/ SFV-42FQT/ SF-20VHQT/ SF-25VHQT/ SF-30VHQT/ SF-35VHQT/ SF-20VHFQT/ SF-25VHFQT/ SF-30VHFQT/ SF-35VHFQT/ SF-T

Voltage Rating: 12 Volt

With Wiring Harness: No

KIT 521314 CONSISTS OF:

1. FAN CONTROL MODULE BOARD 233012

2. 4X WIRE TIES

3. WIRING DIAGRAM 340571

4. WIRING DIAGRAM 340599

5. 063676 MODULE BOARD STOP
